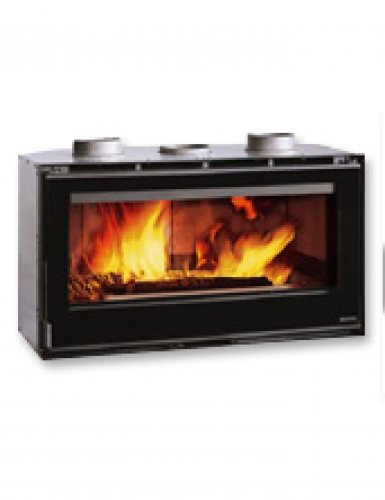

Inserto 100 Crystal

Inserto 100 Crystal. LA NORDICA-EXTRAFLAME Inserts: reliable. Practical, silent and ecological, they enable to heat wide areas in very short time.

Dimensions mm(l,h,p): 1000x555x500

Hearth size: 785x320x360

Smoke outlet ø: 160mm

Outer air inlet ø: 120mm

Weight: 156kg

Nominal thermal power: 9,5kW Hourly consumption: 2,8kg/h

Efficiency: 78,2%

Primary air: ok

Secondary air: ok

Ash drawer: ok

Convection fan: ok
