KORADO (Klasik Series)

Description

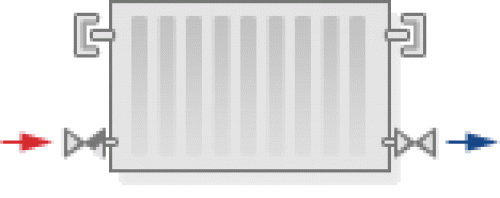

RADIK KLASIK is a steel panel radiator in KLASIK version which allows left or right side connection to a gravity-fed or pressurized heating system. Two upper and two lower hangers are welded at the back of the radiator. Radiators 1 800 mm long and longer have six welded hangers.

Technical Data

Detail

Height H 300, 400, 500, 600, 900 mm

Length L 400, 500, 600, 700, 800, 900, 1000, 1100, 1200,

1400, 1600, 1800, 2000, 2300, 2600, 3000 mm

Connecting pitch h = H - 54 mm

Connecting thread 4 x G½ inside

Maximum working pressure 10 bar

Maximum working temperature 110 °C

Radiator connection left or right side
